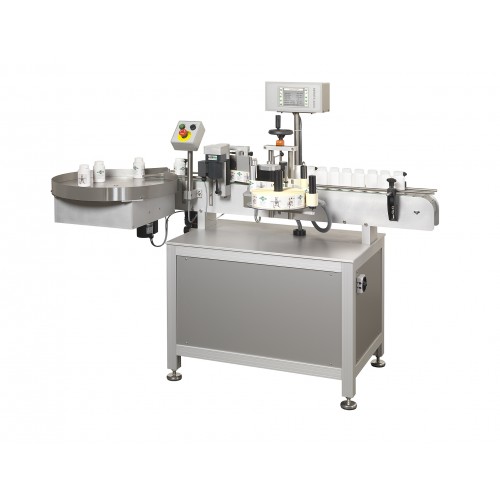

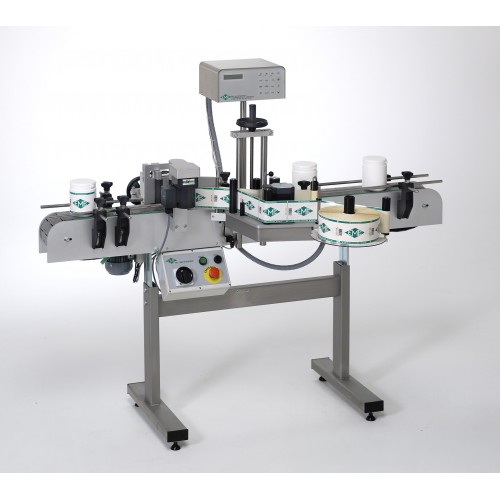

3-Roller
Type: 3-Roller/S4-120
System 3-Roller
Our 3-roller system construction is designed for labelling of round containers, in a method that gives a correct horizontal label position, all around the container.

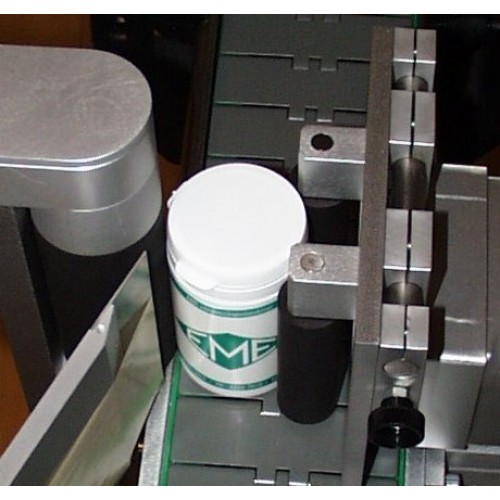

The containers are separated and one by one brought into a station, with one drive roller and 2 idle rollers. Held between the 3 rollers, the container is rotated, while it is held vertical by the 3 rollers. This ensures a correct vertical position of the container, when the label is dispensed on to the container, by the series 4000 dispenser.
The system has easy adjustments which makes it possible to label a wide range of container diameters in the system.
Furthermore, the system can place the label in position to a reference point on the container (option).
A wide range of options are available: print system, encoder, counter, scanner, clear label detection, etc.
Our 3-roller system construction is designed for labelling of round containers, in a method that gives a correct horizontal label position, all around the container.
The containers are separated and one by one brought into a station, with one drive roller and 2 idle rollers. Held between the 3 rollers, the container is rotated, while it is held vertical by the 3 rollers. This ensures a correct vertical position of the container, when the label is dispensed on to the container, by the series 4000 dispenser.
The system has easy adjustments which makes it possible to label a wide range of container diameters in the system.
Furthermore, the system can place the label in position to a reference point on the container (option).
A wide range of options are available: print system, encoder, counter, scanner, clear label detection, etc.
| System Specifications | |
| Product Diameter | Ø10-Ø300 mm depending of configuration |
| Product Height | 10-400mm |
| Capacity / min | 15-60 (depending on product/label) |
| System Length | 1630/2000/2500/3000mm (Other length on request) |
| Power Connections | 1 x 230Vac 500Watt. Green energi motors |
| Air Connection | 40-60 Psi cleaned compressed Air |
| Dispenser Specifications | |
| Label Width | 15 -120 mm |
| Label Length | 10 - 250 mm (Optional: 999 mm) |
| Speed m/min | 0 - 40 m/min. |
| Labels/min. | Up to 500 labels/min. |
| Roll Diameter | 270 mm is standard. Optional 310 mm or 400 mm. |
| Core Diameter | 40 mm or 3'/76mm |
| Menu Languages | Danish, Swedish, Norwegian, English, German, French, Polish, Dutch |
