SO 2120

SO 2120
Type: SO-2120

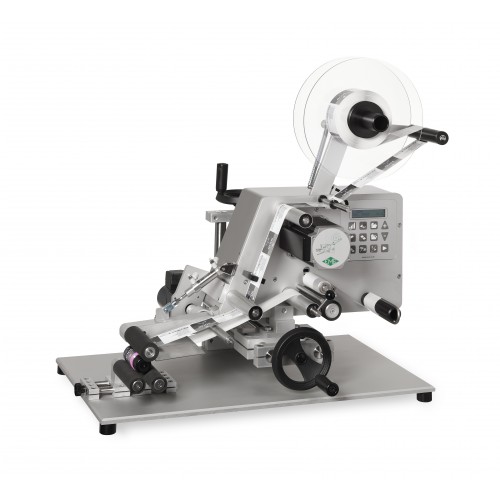

Semi-automatic labelling of cylindrical containers

Model SO-2120 is supplied as an operation-ready unit. The compact design and the simple structure means that users will find the SO-2120 easy to work with, and that they will quickly become familiar with the machine

SO-2120 is built around a Series 2000 dispenser, such that any upgrades to a fully automatic machine will be possible.

The dispenser is run by a stepping motor and is controlled by a micro-processor.
The integrated electronics in the machine housing ensure a simple and quick installation of the dispenser, even in confined spaces.

If additional printing on the label is desired, a
printer can be integrated in the dispenser.
System Specifications
Product Diameter Ø20 - Ø100 mm
Productlength 50-200mm
Dispenser Specifications
Label Width 15-120 mm
Label Length 15-250 mm (Option:15-9999)
Speed m/min 1-30 M/min
Labels/min. Max. 30 labels/min.
Roll Diameter Ø270mm
Core Diameter Ø40mm Option: Ø76mm
Menu Languages 9 different langauge
Weight (Dispenser) 50 kg

SO-2120 Brochure


A-Cad Tegning.
