MO-2500/S4
Type: MO-2500/S4
MO-2500/S4

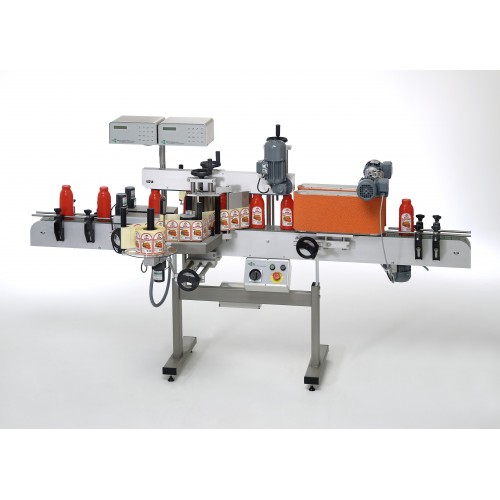

Model MO-2500/S4 is designed for labelling of front- and backside of containers.
With its efficient chain aligner it can align the position of oval shaped containers before applying the labels.
The containers are held between the conveyor and a top-belt during labelling to give an optimal result.
The advanced and modern Series 4000 dispensers apply the labels on the containers.
The wipe down belts with foam surface, press the label efficient on to the container surface for perfect contact.
The system can be delivered in many configurations: with larger conveyor or dispensers, product separator, counter, print system, etc.
As a special option the system can be designed to label round containers, too.eparator, counter, tables, larger dispenser, etc.
Model MO-2500/S4 is designed for labelling of front- and backside of containers.
With its efficient chain aligner it can align the position of oval shaped containers before applying the labels.
The containers are held between the conveyor and a top-belt during labelling to give an optimal result.
The advanced and modern Series 4000 dispensers apply the labels on the containers.
The wipe down belts with foam surface, press the label efficient on to the container surface for perfect contact.
The system can be delivered in many configurations: with larger conveyor or dispensers, product separator, counter, print system, etc.
As a special option the system can be designed to label round containers, too.eparator, counter, tables, larger dispenser, etc.
| System Specifications | |
| Product Diameter | Ø30-Ø100 mm depending of configuration |
| Productlength | 50-250mm |
| Product Width | 15-100mm* *Others on request |
| Product Height | 10-300mm |
| Capacity / min | 15-150 (depending on product/label) |
| System Length | 2500/3000mm (Other length on request) |
| Power Connections | 1 x 230Vac 1200Watt. Green energi motors |
| Air Connection | 40-60 Psi cleaned compressed Air * *Only when separator / printer is fitted |
| Dispenser Specifications | |
| Label Width | 15 -120 mm |
| Label Length | 10 - 250 mm (Optional: 999 mm) |
| Speed m/min | 0 - 40 m/min. |
| Labels/min. | Up to 500 labels/min. |
| Roll Diameter | 270 mm is standard. Optional 310 mm or 400 mm. |
| Core Diameter | 40 mm or 3'/76mm |
| Menu Languages | Danish, Swedish, Norwegian, English, German, French, Polish, Dutch |
