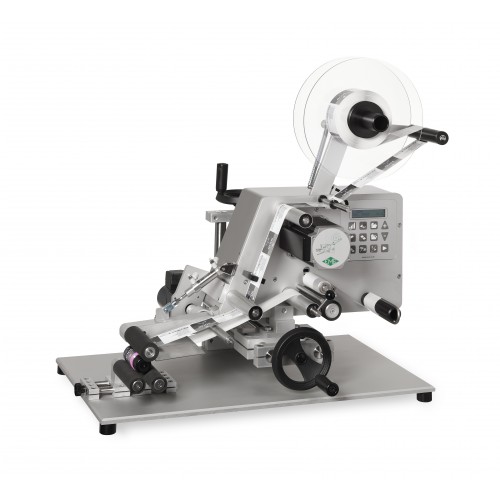

SO 2120
Type: SO-2120
Semi-automatic labelling of cylindrical containers
Model SO-2120 is supplied as an operation-ready unit. The compact design and the simple structure means that users will find the SO-2120 easy to work with, and that they will quickly become familiar with the machine
SO-2120 is built around a Series 2000 dispenser, such that any upgrades to a fully automatic machine will be possible.
The dispenser is run by a stepping motor and is controlled by a micro-processor.
The integrated electronics in the machine housing ensure a simple and quick installation of the dispenser, even in confined spaces.
If additional printing on the label is desired, a printer can be integrated in the dispenser.
Model SO-2120 is supplied as an operation-ready unit. The compact design and the simple structure means that users will find the SO-2120 easy to work with, and that they will quickly become familiar with the machine
SO-2120 is built around a Series 2000 dispenser, such that any upgrades to a fully automatic machine will be possible.
The dispenser is run by a stepping motor and is controlled by a micro-processor.
The integrated electronics in the machine housing ensure a simple and quick installation of the dispenser, even in confined spaces.
If additional printing on the label is desired, a printer can be integrated in the dispenser.
| System Specifications | |
| Product Diameter | Ø20 - Ø100 mm |
| Productlength | 50-200mm |
| Dispenser Specifications | |
| Label Width | 15-120 mm |
| Label Length | 15-250 mm (Option:15-9999) |
| Speed m/min | 1-30 M/min |
| Labels/min. | Max. 30 labels/min. |
| Roll Diameter | Ø270mm |
| Core Diameter | Ø40mm Option: Ø76mm |
| Menu Languages | 9 different langauge |
| Weight (Dispenser) | 50 kg |
