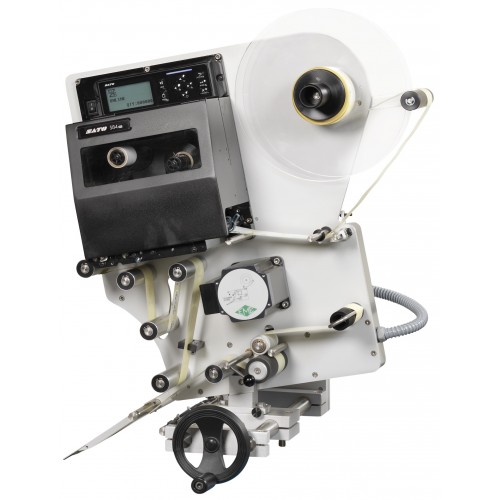

Series 4000PFP
Series4000PFPis essentially our EME 4-120 or EME 4-200, but structured so that OEM print modules from companies such as Cab, Carl Valentin, Datamax, SATO, Zebra, etc. can be installed.
The clever assembly makes it possible to apply labels at a rate of up to 40m / min. without compromising print quality. After the printing, the printed labels are accumulated in a loop such that the loop can be filled up with the speed that provides the optimum print quality, while the labels can be affixed with a different or varying speed.
The maximum track width is 15mm less than in the corresponding Series 4000 dispensers, without the print module.
A variety ofaccessory programsare available, e.g.: printing system, tacho / encoder, scanner, counter, various types of sensors etc.
Dispenser Specifications |
Label Width |
15 - 105 mm (4-200 PFP: 15-185mm) |
Label Length |
10 - 250 mm
(Optional: 999 mm) |
Speed m/min |
0 - 40 m/min. |
Labels/min. |
Up to 500 labels/min. |
Roll Diameter |
270 mm is standard. Optional 310 mm or 400 mm. |
Core Diameter |
40 mm or 3'/76mm |
Menu Languages |
Danish, Swedish, Norwegian, English, German, French, Polish, Dutch |
Weight (Dispenser) |
16 kilos |
Weight (Controller) |
7 kilos |
Power/Consumption: |
230VAC 50/60Hz / maks. 250 watt in operation |
